Alfano Data Loggers

Alfano DM4 / BX4GPS & Alfano DM4 / BX4

This latest kart lap timing system from Alfano uses Bluetooth technology which means there are no wires needed to connect to the display unit itself. Instead a separate box with 4 inputs is remotely mounted on the kart to which the sensors are connected. The data is then sent to the display via Bluetooth.
Lap timing is via GPS which is inbuilt or via a magnetic sensor supplied should you choose to use the magnetic strips embedded in the race track. The inbuilt memory records up to 100 laps which can be reviewed on the display after each session.
9 LEDs across the top of the unit display RPM limits or Lambda (separate sensor and box required) and two additional LEDs at the side of the unit alert to high temperature or pressure (separate sensor and box required).

The Alfano DM4 / BX4 system is identical to the GPS model in every respect except that it does not have GPS functionality.

To purchase either model of the latest Alfano DM4 data logger go to our Online Shop.

Alfano DM4 + BX4GPS

Alfano DM4 Kart Data Logger Features –

  • Lap timing to 1/100th second
  • Data recording 5 / 10 / 20 Hertz
  • 9 LEDs – RPM / Lambda
  • 2 LEDs – Temperature / Pressure
  • 5 Engine time counters
  • Bluetooth connectivity
  • Water resistant to IP56
  • Backlight
  • Dimensions: 133.5 x 90 x 28 mm
  • Screen: 77 x 45 mm / 160 x 94 pixels
  • Weight: 253 grams

Alfano Input Box BX4GPS

The bluetooth box included with the lap timer provides the following inputs:

  • Integrated GPS
  • 1 x Display input (BUS)
  • 1 x Magnetic / Infrared timing input
  • 1 x RPM input (max 30,000 rpm)
  • 1 x Temperature input (max 1000 deg C)
  • Water resistant to IP56
  • Dimensions: 85 x 88 x 54 mm
  • Weight: 185 grams
  • Powered by 2 x AA batteries (included)

Alfano Accessories:

Alfano CHT Probe Cylinder Head Temp Probe

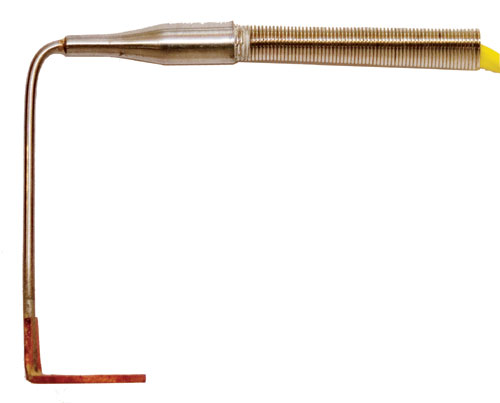

Alfano Long CHT Probe Long CHT Probe

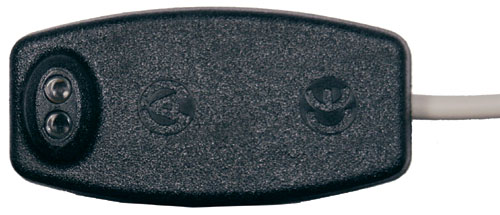

Alfano Download IR Interface Infra Red Download
Alfano G-Force Sensor G – Force Sensor

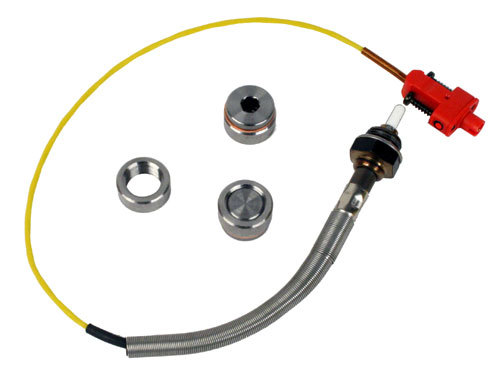

Alfano Lambda Sensor Lambda Sensor

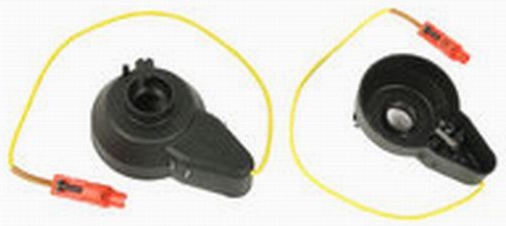

Alfano Power Valve Sensor Rotax Power Valve Sensor
Alfano Speed Sensor Speed Sensor

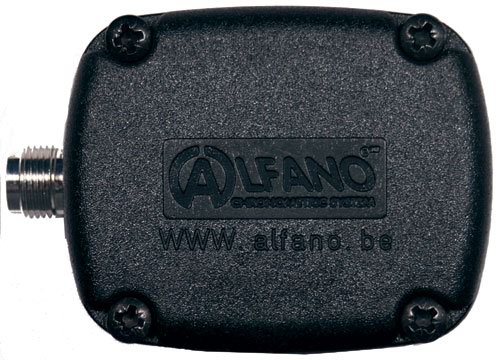

Alfano Infra Red Receiver Infra Red Receiver
Alfano Magnetic Sensor Magnetic Sensor

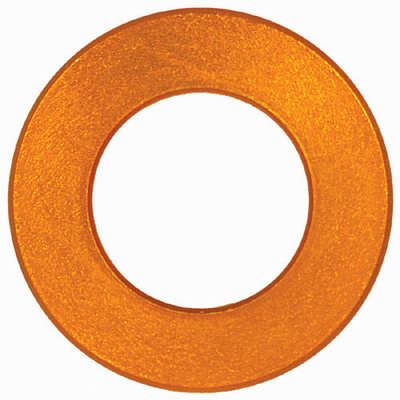

Alfano Speed Magnet Collar Speed Magnet Collar
Alfano Water Temperature Sensor Water Temperature Sensor
