Karting Race Engines

Concept Karting also offers the following In-House services:

  • Engine Rebuilding and Servicing
  • Precision Cylinder Honing
  • Carburettor Tuning
  • Dynomometer Engine Running-In and Tuning
  • Kart Chassis Repairs and Assembly
  • Exhaust Muffler Cleaning

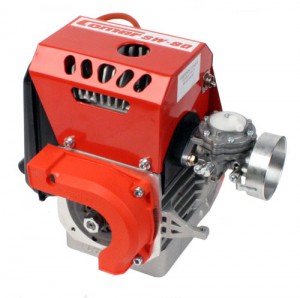

Comer SW-80 Engine

Comer SW-80 Engine

(click picture to enlarge) Comer SW-80 Engine

  • Fan Cooled / Air Cooled Single Cylinder Engine
  • Displacement: 80 cc
  • Bore / Stroke: 52.1 mm / 38.1 mm
  • Inlet System: Piston Port
  • Carburetor: Tillotson HL 166B or HL 326A
  • Ignition: Magneto Style Ducati / Bosch KDT
  • Centrifugal Clutch
  • Exhaust Muffler
  • Pull Start

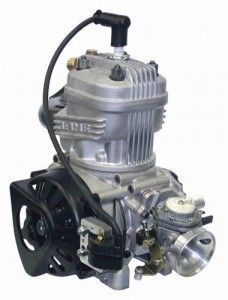

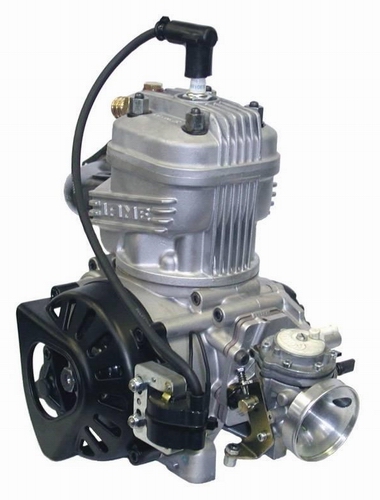

IAME Parilla X-30 125 Engine

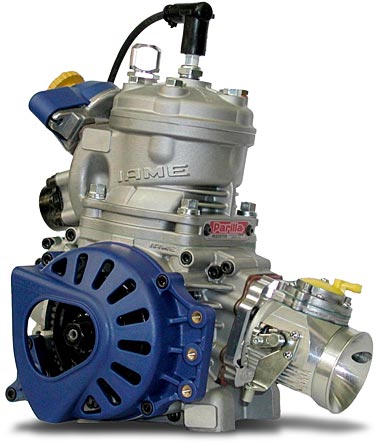

(click picture to enlarge) Parilla X30 Engine

(click picture to enlarge) Parilla X30 Engine

  • Water Cooled with External Water Pump
  • Displacement: 123.67 cm³
  • Bore / Stroke: 54 mm / 54 mm
  • Counter Balance Shaft System
  • Inlet System: Reed Valves
  • Carburetor: Tryton H27-C
  • Ignition: Selettra or PVL
  • Wiring Loom
  • Centrifugal Clutch
  • Exhaust Muffler and Header
  • Water Radiator and Hoses
  • Intake Air Box

PRD Galaxy 125W Engine

PRD Galaxy

(click picture to enlarge) PRD Galaxy Engine

  • Water Cooled with External Water Pump
  • Displacement: 124 cm³
  • Bore / Stroke: 53.8 mm / 54 mm
  • Inlet System: Reed Valves
  • Carburetor: Ibea L9 24/28
  • Ignition: PVL Digital
  • Adjustable Power Valve
  • Wiring Loom
  • New Steel Centrifugal Clutch
  • One Piece Tuned Exhaust Muffler and Header
  • Water Radiator and Hoses
  • Intake Air Box

Rotax Junior Max 125 Engine

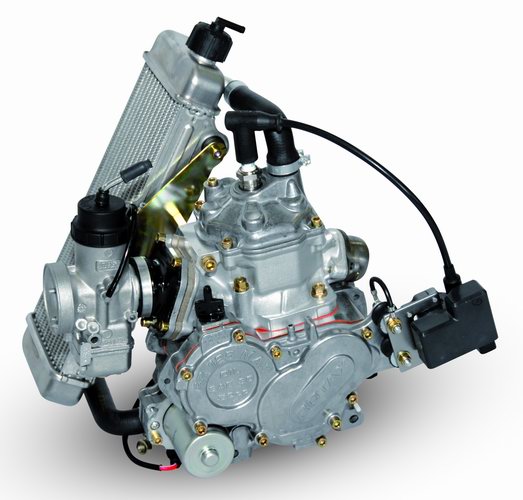

(click picture to enlarge) Rotax Junior Max 125 Engine

(click picture to enlarge) Rotax Junior Max 125 Engine

  • Water Cooled with Integrated Water Pump
  • Displacement: 124.8 cm³
  • Bore / Stroke: 54 mm / 54.50 mm
  • Counter Balance Shaft System
  • GILNISIL Plated Cylinder
  • Inlet System: Reed Valves
  • Carburetor: Dell’Orto VHSB 34
  • Ignition: Denso Digital
  • Wiring Loom
  • Centrifugal Clutch
  • Exhaust Muffler and Header
  • Water Radiator and Hoses
  • Intake Air Box

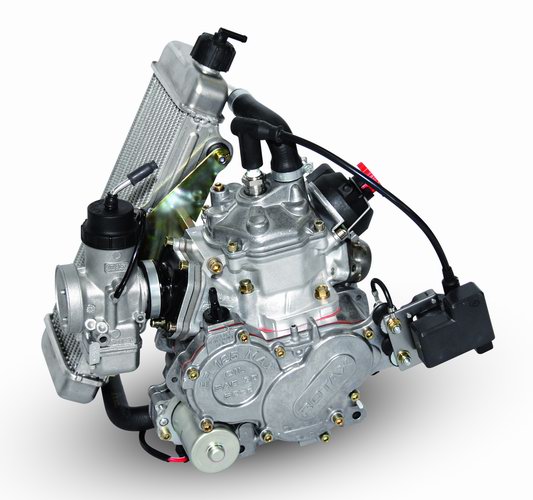

Rotax Max 125 Engine

(click picture to enlarge) Rotax 125 Max Engine

(click picture to enlarge) Rotax 125 Max Engine

  • Water Cooled with Integrated Water Pump
  • Displacement: 124.8 cm³
  • Bore / Stroke: 54 mm / 54.50 mm
  • Counter Balance Shaft System
  • GILNISIL Plated Cylinder
  • Inlet System: Reed Valves
  • Carburetor: Dell’Orto VHSB 34
  • Ignition: Denso Digital
  • Pneumatic Exhaust Power Valve
  • Wiring Loom
  • Centrifugal Clutch
  • Exhaust Muffler and Header
  • Water Radiator and Hoses
  • Intake Air Box

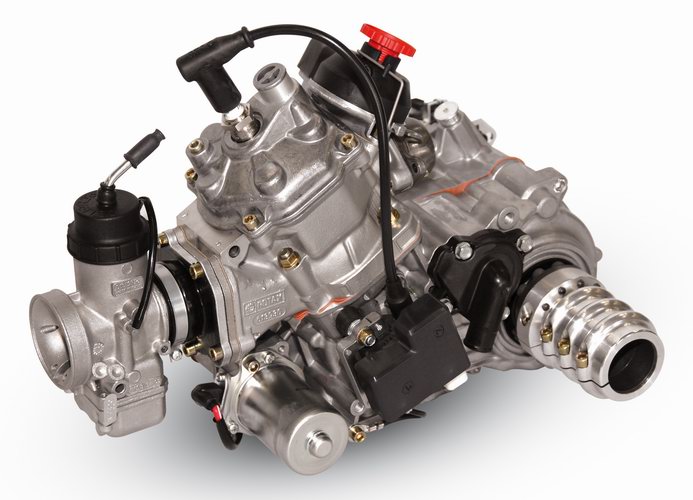

Rotax DD2 Max 125 Engine

Rotax DD2 Max 125 Engine

(click picture to enlarge) Rotax DD2 Max 125 Engine

  • Water Cooled with Integrated Water Pump
  • Displacement: 124.8 cm³
  • Bore / Stroke: 54 mm / 54.50 mm
  • Counter Balance Shaft System
  • GILNISIL Plated Cylinder
  • Inlet System: Reed Valves
  • Carburetor: Dell’Orto VHSB 34
  • Ignition: Denso Digital
  • Pneumatic Exhaust Power Valve
  • 2 Speed Gearbox with Paddle Shift
  • Wiring Loom
  • Centrifugal Clutch
  • Exhaust Muffler and Header
  • Water Radiator and Hoses
  • Intake Air Box

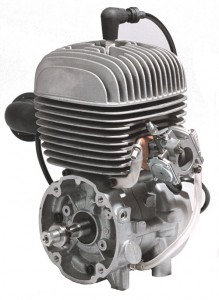

Yamaha KT100J Engine

(click picture to enlarge) Yamaha KT100J Engine

(click picture to enlarge) Yamaha KT100J Engine

  • Air Cooled Engine
  • Displacement: 98.10 cm³
  • Bore / Stroke: 50 mm / 50 mm
  • Inlet System: Piston Port (5 Port)
  • Carburetor: Walbro WB3A
  • Ignition: Yamaha CDI or TCI
  • Centrifugal Clutch (Optional)
  • Exhaust Header

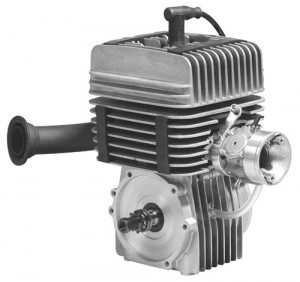

Yamaha KT100S Engine

(click picture to enlarge) Yamaha KT100S Engine

(click picture to enlarge) Yamaha KT100S Engine

  • Air Cooled Engine
  • Displacement: 97.60 cm³
  • Bore / Stroke: 52 mm / 46 mm
  • Inlet System: Piston Port (7 Port)
  • Carburetor: Walbro WB3A
  • Ignition: Yamaha TCI
  • Centrifugal Clutch (Optional)
  • Exhaust Header

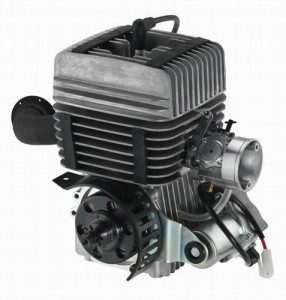

Yamaha KT100SEC Engine

(click picture to enlarge) Yamaha KT100SEC Engine

(click picture to enlarge) Yamaha KT100SEC Engine

  • Air Cooled Engine
  • Displacement: 97.60 cm³
  • Bore / Stroke: 52 mm / 46 mm
  • Inlet System: Piston Port (7 Port)
  • Carburetor: Walbro WB3A
  • Ignition: Yamaha TCI
  • Electric Start
  • Wiring Loom
  • Centrifugal Clutch (Optional)
  • Exhaust Header
